Setting up PlayFab authentication using Google and HTML5 - XBOX Game Development Documentation

This tutorial guides you through the process of PlayFab authentication using Google and HTML5/JavaScript.

Requirements

You’ll need:

A Google account for testing.
A Registered [PlayFab](https://developer.playfab.com/) title.
Familiarity with Login basics and Best Practices.
At the minimum, a server with a valid domain name to act as a static HTML file. Consult the Running an HTTP server for testing tutorial for information on how to set one up.

Server and domain

This guide requires a server with a valid domain to follow. If you don’t have a registered domain and remote web server yet, follow our Running an HTTP server for testing tutorial for information on how to set one to run a local web server with a valid domain name. Throughout this guide, we’ll assume your domain is [http://playfab.example](http://playfab.example).

Registering a Google API project

Start by navigating to the Google API Console:

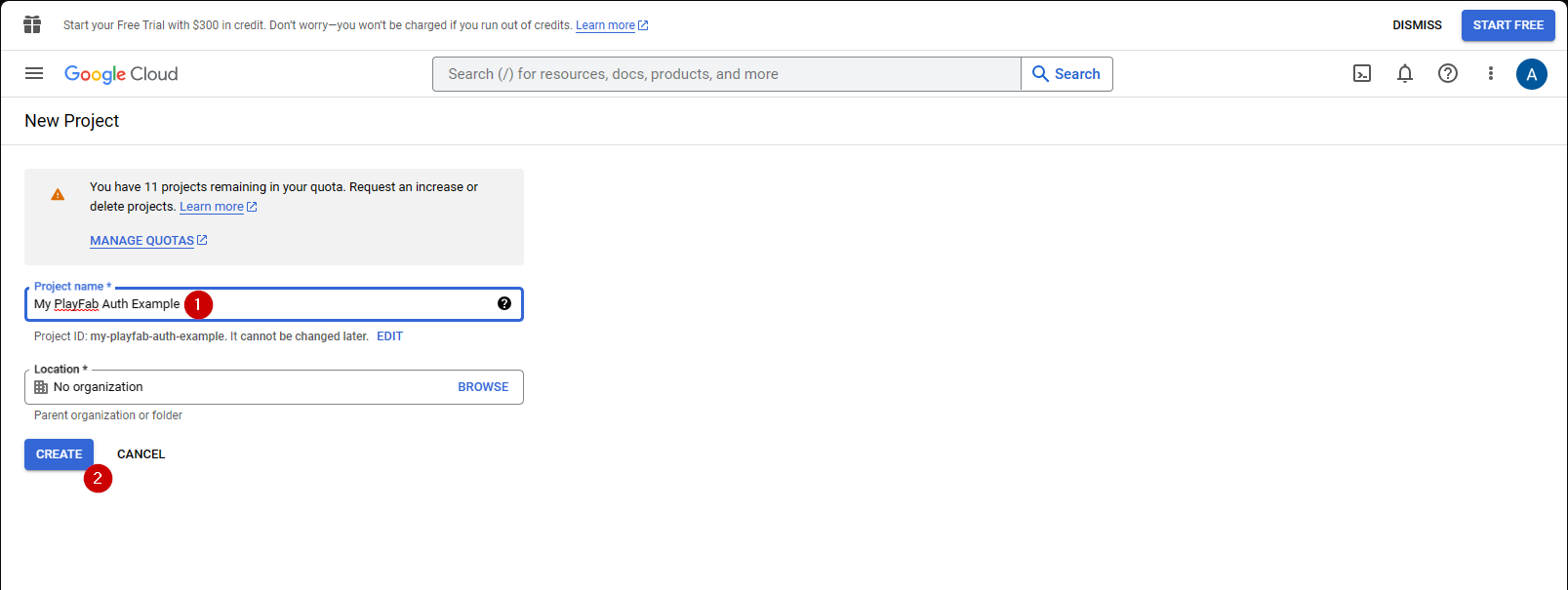

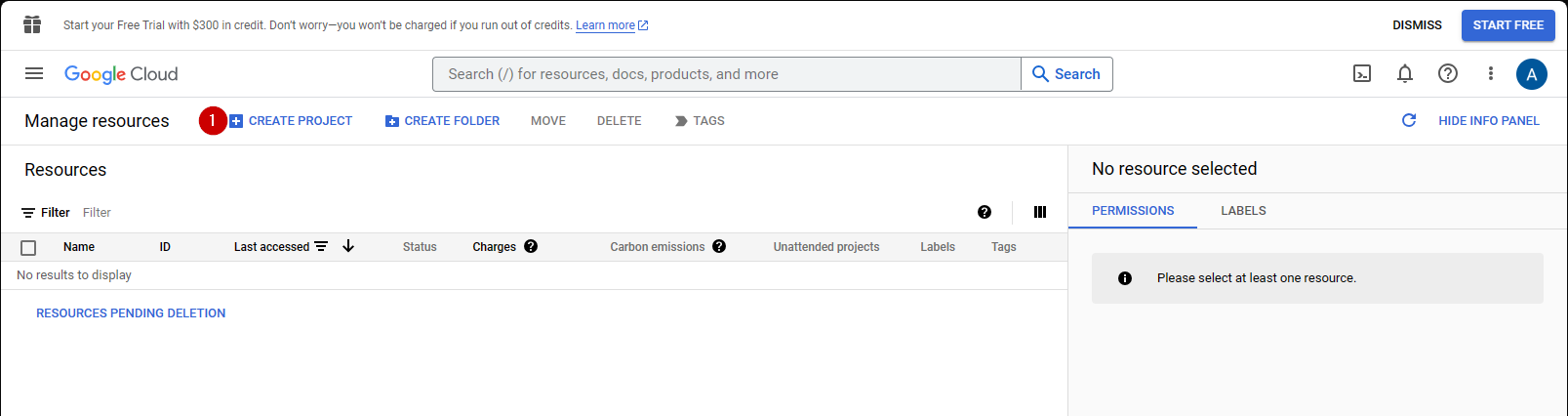

Navigate to CREATE PROJECT and select it.

Fill in the field under Project Name.
Select the Create button.

It’s normal for API Manager to take 10-20 seconds to generate the project.

Once the Project is created:

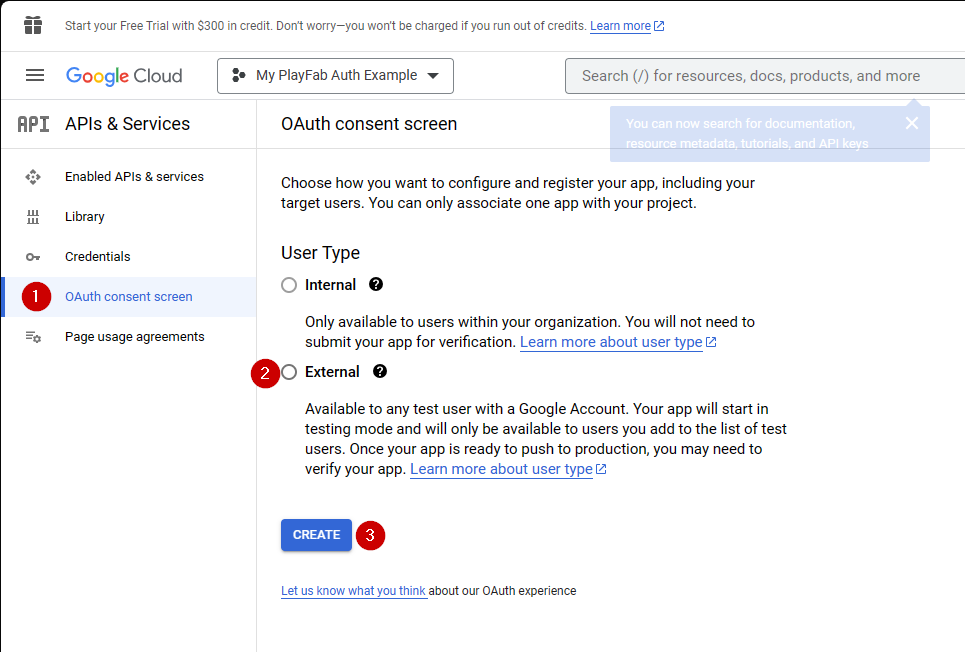

Navigate to the OAuth consent screen.
Select External under User Type
Then select Create.

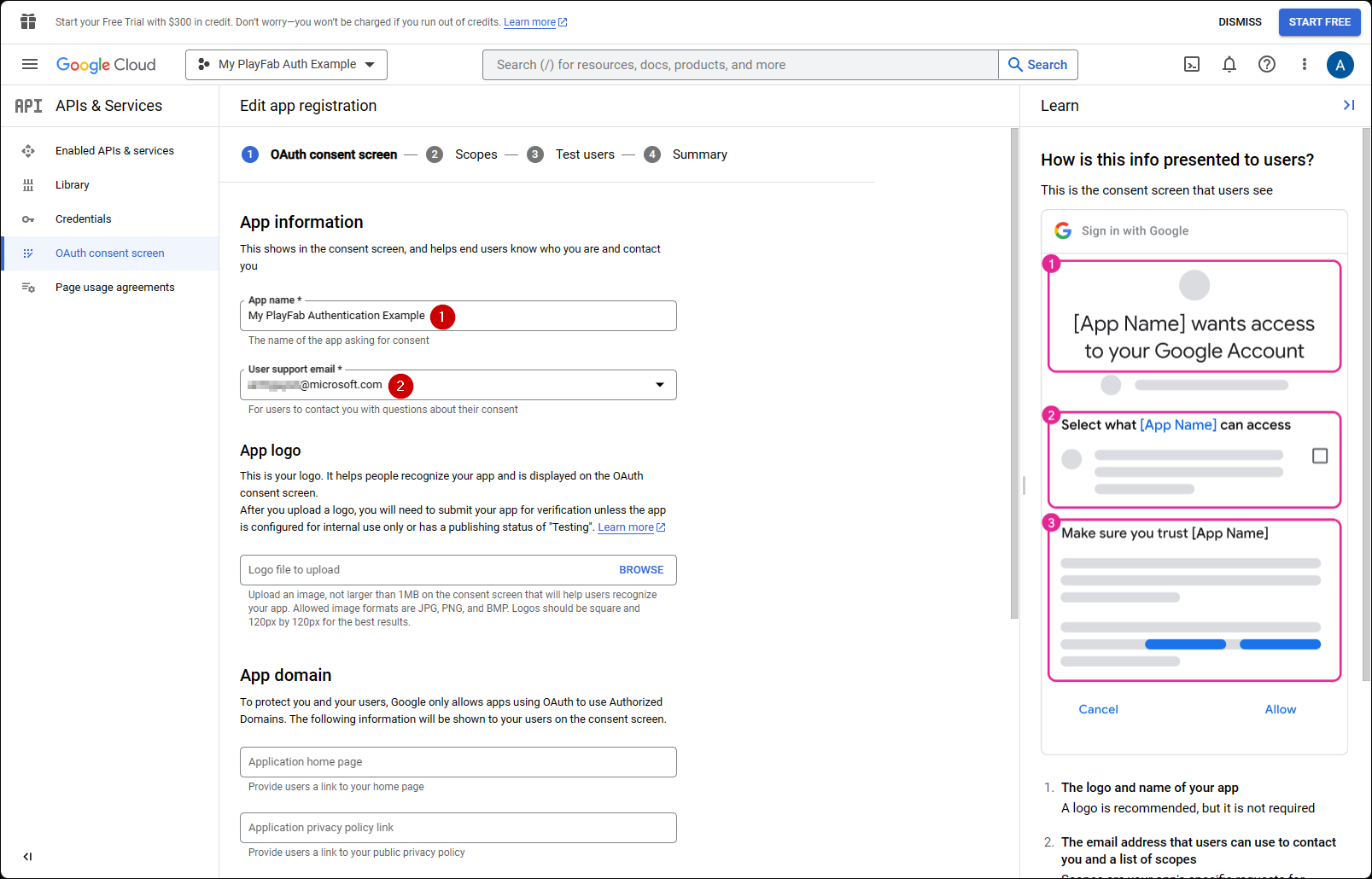

Fill out an App Name

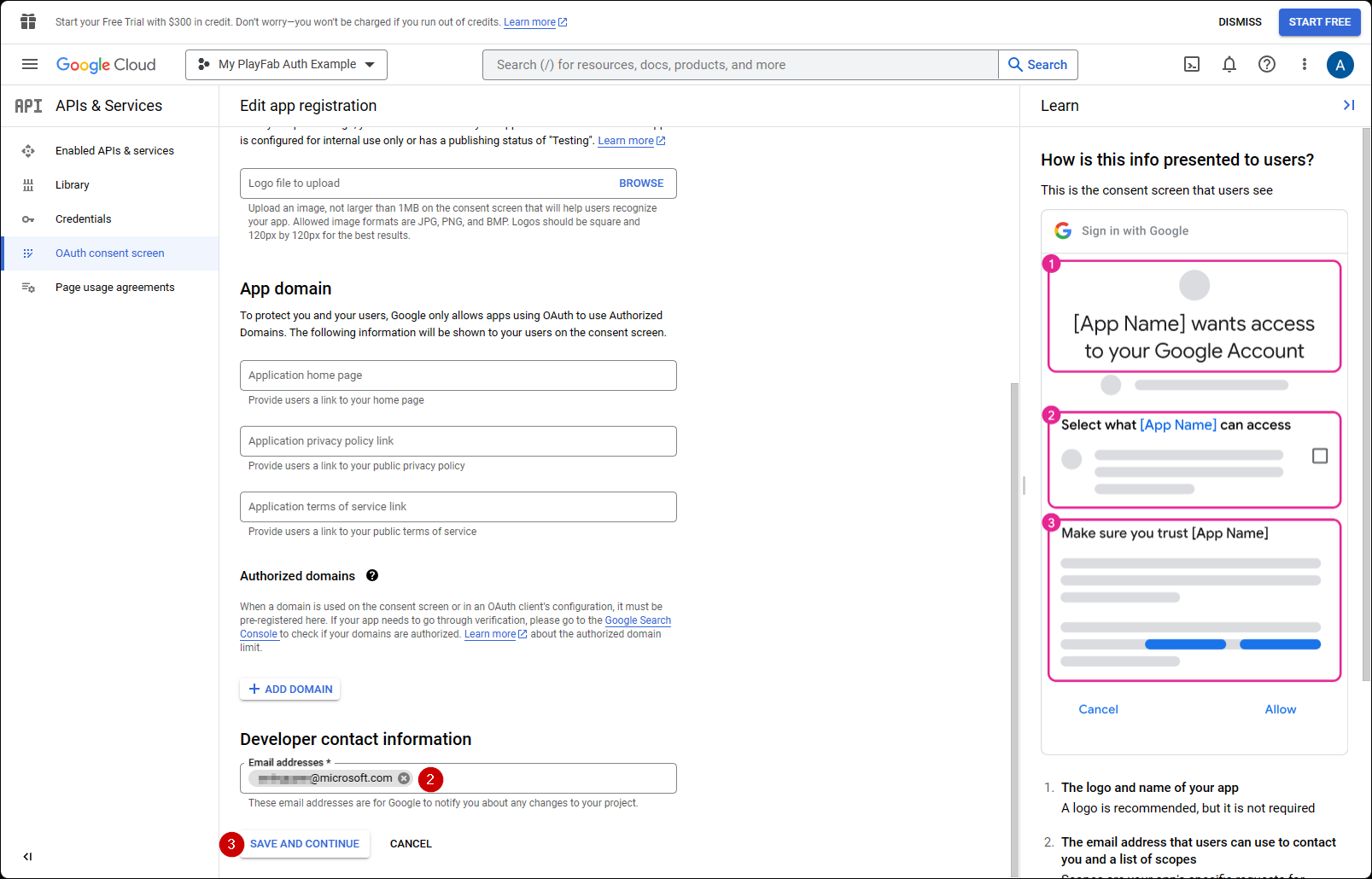

Make sure there are emails for user support email and Developer Contact Email
Then select SAVE AND CONTINUE

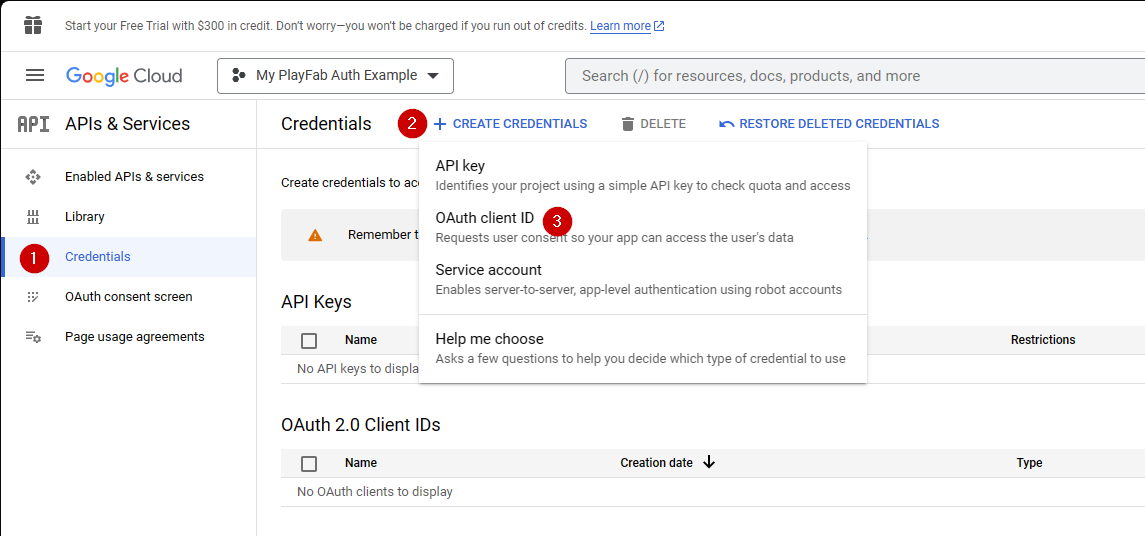

Next, navigate to Credentials.
Select Create credentials.
Then select OAuth client ID.

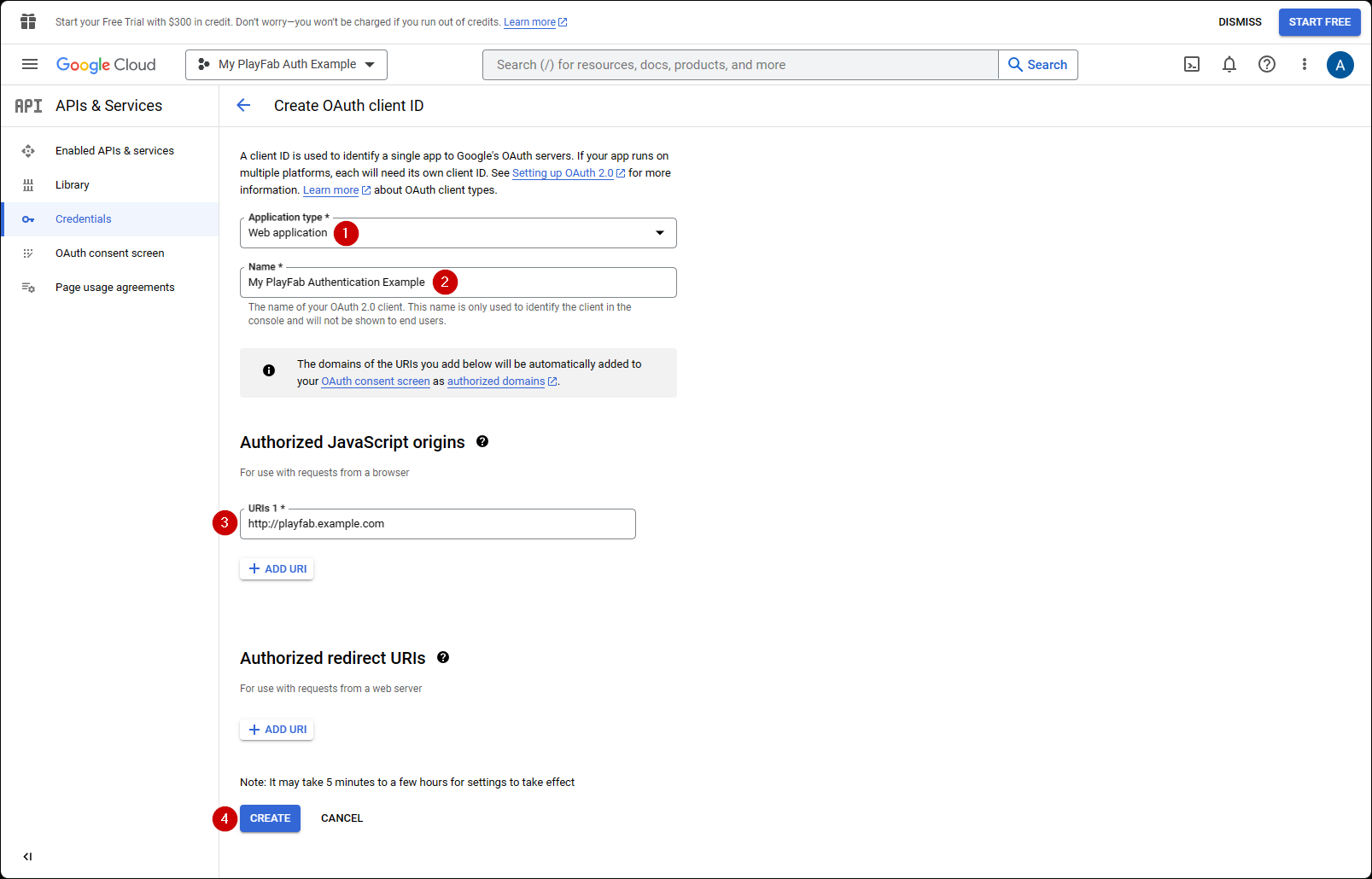

Select Web Application as your Application type.
Give your application a Name.
Add your domain to Authorized JavaScript origins - [PlayFab](http://playfab.example.com) in our case.
Finally, select the Create button to commit your changes.

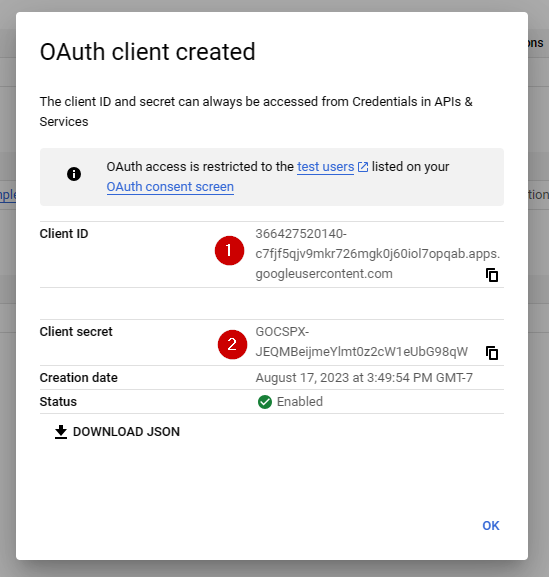

On the OAuth client screen shown below, the Google API Manager reveals two important pieces of information:

The client ID
The client secret.

Be sure to copy and save these values in a safe place that is easily accessible, as they’ll be used in the authorization process shown later in this tutorial.

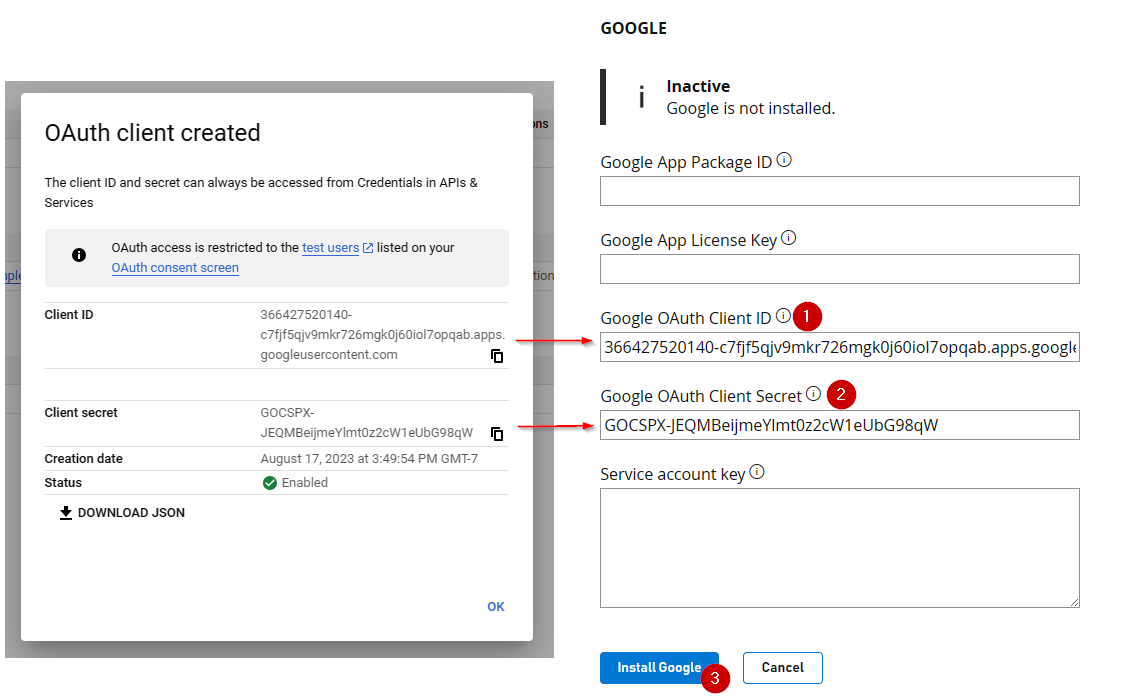

Go to the PlayFab Game Manager page for your title.

Navigate to Add-ons in the menu.
Locate and open the Google Add-on icon/link.

Fill in the Client ID.
Fill in the Client secret.
Then select the Install Google button.

As of July 2017, Google API Manager has a bad habit of not hooking the Allowed JS origin domain properly. If you receive the following error: “idpiframe_initialization_failed”, details: “Not a valid origin for the client: somedomain.com…” Remove the credentials and recreate them. There’s no need to delete the entire project - just the credentials.

Testing using an access token

In this example, we show how to test the LoginWithGoogleAccount API using the classic access token approach. Use the HTML code provided below for your testing.

Make sure* to replace YOUR_CLIENT_ID and YOUR_PLAYFAB_TITLE with your own values.

the AccessToken param is missing in the LoginWithGoogleAccountRequest object in the TypeScript typings files. If you are using TypeScript with the Node SDK, you can create a custom type interface LoginRequest extends PlayFabClientModels.LoginWithGoogleAccountRequest { AccessToken: string; } and cast the type when using the API

PlayFabClient.LoginWithGoogleAccount( { AccessToken: accessToken, CreateAccount: true, } as LoginRequest, onPlayFabResponse);

<!DOCTYPE html>
<html>
  <head>
    <script src="https://accounts.google.com/gsi/client" onload="initClient()" async defer></script>
    <script src="https://download.playfab.com/PlayFabClientApi.js"></script>
  </head>
  <body>
    <script>
      var client;
      function initClient() {
          console.log("Initializing Google token client on page load");
          client = google.accounts.oauth2.initTokenClient({
              client_id: "YOUR_CLIENT_ID", // TODO: PUT YOUR GOOGLE CLIENT_ID HERE!
              callback: "onTokenResponse",
              scope: "https://www.googleapis.com/auth/userinfo.profile",
              callback: (tokenResponse) => {
                  access_token = tokenResponse.access_token;
                  onSignIn();
              }
          });
      }

      function getToken() {
        client.requestAccessToken();
      }

      // Invoked after user has signed in with Google
      function onSignIn() {
          // Execute LoginWithGoogleAccount API call using the Google access token. Please replace TitleId.
          logLine("Attempting PlayFab Sign-in using LoginWithGoogleAccount");
          PlayFabClientSDK.LoginWithGoogleAccount({
              AccessToken: access_token, // This access token is generated after a user has signed into Google
              CreateAccount: true,
              TitleId: "YOUR_PLAYFAB_TITLE", // TODO: PUT YOUR TITLE ID HERE!
          }, onPlayFabResponse);
      }

      // Handles response from PlayFab
      function onPlayFabResponse(response, error) {
          if (response)
              logLine("Response: " + JSON.stringify(response));
          if (error)
              logLine("Error: " + JSON.stringify(error));
      }

      function logLine(message) {
          var textnode = document.createTextNode(message);
          document.body.appendChild(textnode);
          var br = document.createElement("br");
          document.body.appendChild(br);
      }
    </script>
    <h1>Google Access Token Auth Example</h1>
    <!-- Clicking this button will prompt the user to sign into Google. Once they have signed into Google, LoginWithGoogleAccount is automatically called. -->
    <button onclick="getToken();">Sign into Google</button><br><br>
  </body>
</html>

Testing using the (deprecated) Google Sign-in Platform library

The sample below uses the Google Sign-In platform library. According to the Google Identity public documentation site, the Google Sign-In JavaScript platform library for Web will be deprecated March 31, 2023. This sample won’t work for newly created Google clients moving forward - refer to the prior code sample, which uses the newer Google Identity Services library!

<!DOCTYPE html>
<html>
<head>
    <!-- Special meta tag allows you to pass Google Client ID. Replace the content attribute value with your own Client Id -->
    <meta name="google-signin-client_id" content="YOUR_CLIENT_ID"><!-- // TODO: PUT YOUR GOOGLE CLIENT_ID HERE! -->
    <!-- Load Google platform SDK-->
    <script src="https://apis.google.com/js/platform.js" async defer></script>
    <!-- Load PlayFab Client JavaScript SDK -->
    <script src="https://download.playfab.com/PlayFabClientApi.js"></script>
</head>
<body>
    <p>Google Access Token Auth Example</p>
    <!-- Neat Google button gets styled automatically when Google platform SDK is loaded -->
    <div class="g-signin2" data-onsuccess="onSignIn"></div>
    <script>
        // Invoked when user has signed in with Google
        function onSignIn() {
            // Retrieve access token
            var accessToken = gapi.auth2.getAuthInstance().currentUser.get().getAuthResponse(true).access_token;
            // Execute LoginWithGoogleAccount API call using the access token. Please replace TitleID with your own.
            logLine("Attempting PlayFab Sign-in using LoginWithGoogleAccount");
            PlayFabClientSDK.LoginWithGoogleAccount({
                ServerAuthCode: accessToken,
                CreateAccount : true,
                TitleId: "YOUR_PLAYFAB_TITLE", // TODO: PUT YOUR TITLE ID HERE!
            }, onPlayFabResponse);
        }

        // Handles response from PlayFab
        function onPlayFabResponse(response, error) {
            if (response)
                logLine("Response: " + JSON.stringify(response));
            if (error)
                logLine("Error: " + JSON.stringify(error));
        }

        function logLine(message) {
            var textnode = document.createTextNode(message);
            document.body.appendChild(textnode);
            var br = document.createElement("br");
            document.body.appendChild(br);
        }
    </script>
</body>
</html>

Remember to open this page using your web server, and make sure to access this page using the URL you specified, while configuring Google Project, (http://playfab.example in our case).

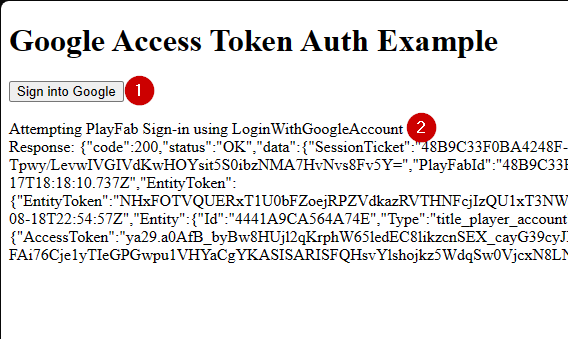

Once the page opens, select G Signed In, and follow the general Google authentication flow.
When this is finished, the script will try to authenticate on the PlayFab side and output the result.

If you already have a Google authentication session running, you won’t have to select G Signed In. Everything will happen automatically.
