Cmask 解碼

[RootSignature(FullScreenQuadRS)]
float4 PSOverlay(Interpolators In) : SV_TARGET0
{
    const float4 vRed = float4( 1.0f, 0.0f, 0.0f, 0.5f );
    const float4 vGreen = float4( 0.0f, 1.0f, 0.0f, 0.5f );

    uint2 ScreenPosition = uint2(In.Position.xy);

    // Cmask tile size is always 8x8;
    uint2 CmaskTileCoord = ScreenPosition >> 3;

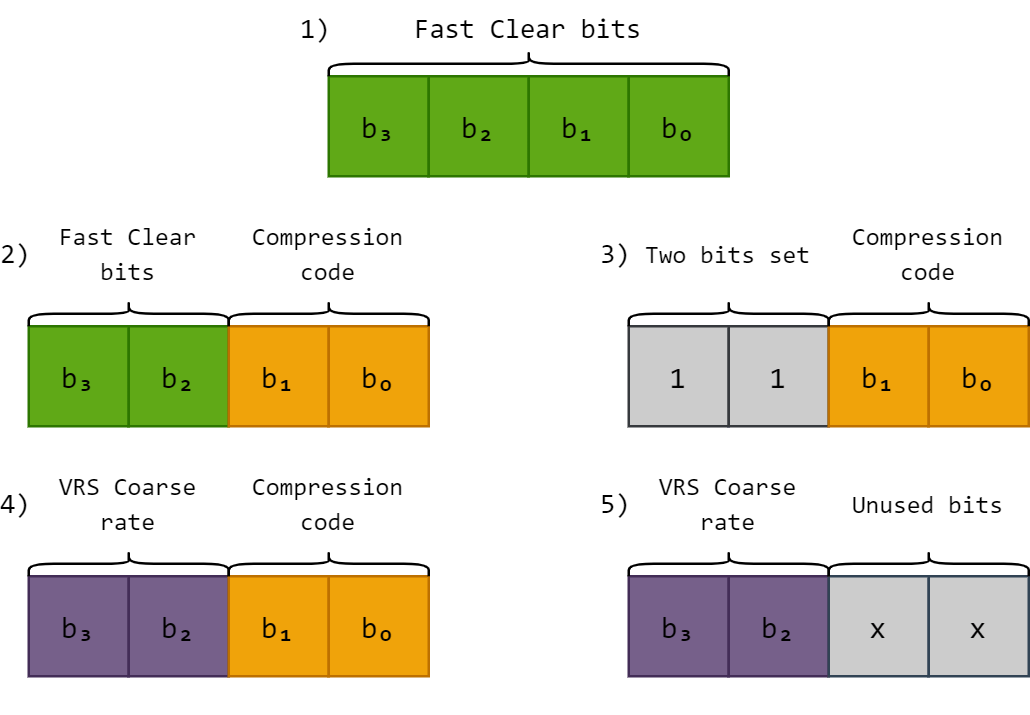

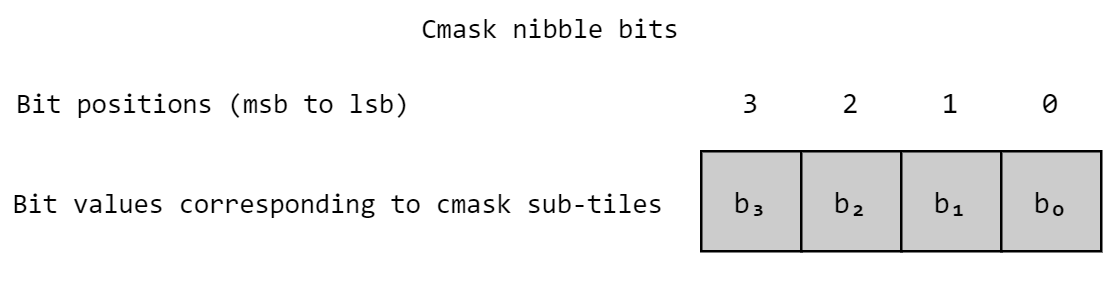

    // Fetch Cmask value that is has 4 bits
    uint CmaskNibble = g_texThumb[CmaskTileCoord];

#if g_bSubTile

    // Compute coordinates of 2x2 quad within Cmask 8x8 tile
    uint2 QuadLocalCoord = uint2(
        __XB_UBFE(2u, 1u, ScreenPosition.x),
        __XB_UBFE(2u, 1u, ScreenPosition.y)
    );

    /** Based on the layout mode of Cmask sub-tiles and coordinates of the current quad
     *  within Cmask 8x8 tile, determine the position of the bit within a Cmask nibble
     *  that indicates whether the sub-tile covering current quad was touched by
     *  rendering or not
     */
     uint SubTileBitPos = 0;

    if (SubTileLayoutMode == 0)
    {

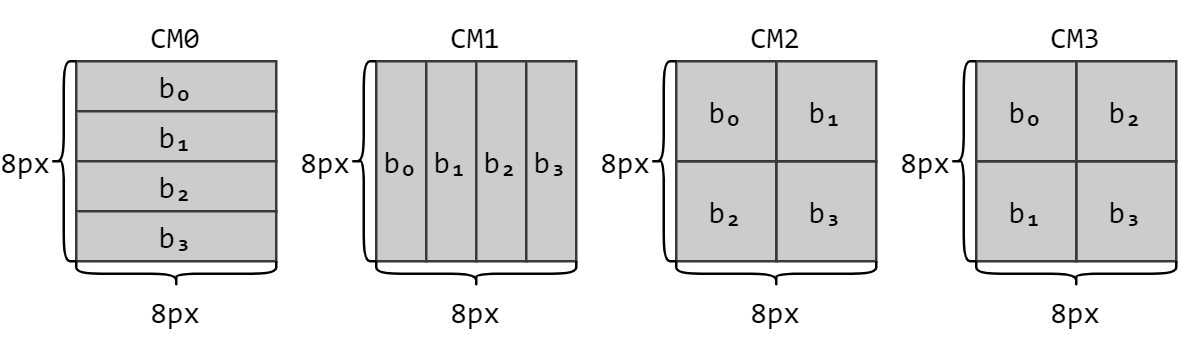

        /** 2x2 mode.
         *  4x4 pixel tiles correspond to the following bits:
         *      +---+---+
         *      | 0 | 1 |
         *      +---+---+
         *      | 2 | 3 |
         *      +---+---+
         */
        SubTileBitPos = (QuadLocalCoord.x >> 1u) | (QuadLocalCoord.y & 0x2);
    }
    else if (SubTileLayoutMode == 1)
    {
        /** 2x2 rotated mode (Xbox Series X|S only).
         *  4x4 tiles correspond to the following bits:
         *      +---+---+
         *      | 0 | 2 |
         *      +---+---+
         *      | 1 | 3 |
         *      +---+---+
         */
        SubTileBitPos = (QuadLocalCoord.y >> 1u) | (QuadLocalCoord.x & 0x2);
    }
    else if (SubTileLayoutMode == 2)
    {
        /** 4x1 mode (Xbox One only).
         *  2x8 tiles correspond to the following bits:
         *      +-+-+-+-+
         *      | | | | |
         *      |0|1|2|3|
         *      | | | | |
         *      +-+-+-+-+
         */
        SubTileBitPos = QuadLocalCoord.x;
    }
    else if (SubTileLayoutMode == 3)
    {
        /** 1x4 mode.
         *  8x2 tiles correspond to the following bits:
         *      +---0---+
         *      +---1---+
         *      +---2---+
         *      +---3---+
         */
        SubTileBitPos = QuadLocalCoord.y;
    }
    else if (SubTileLayoutMode == 4)
    {

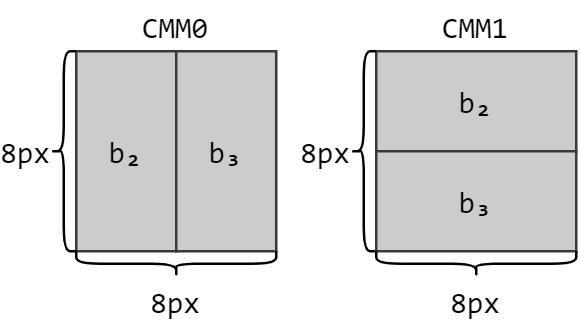

        /** 2x1 mode (Xbox One only, MSAA only).
         *  4x8 tiles correspond to the following bits:
         *      +---+---+
         *      |   |   |
         *      | 0 | 1 |
         *      |   |   |
         *      +---+---+
         */
        SubTileBitPos = 2u + (QuadLocalCoord.x >> 1u);
    }
    else if (SubTileLayoutMode == 5)
    {
        /** 1x2 mode (MSAA only).
         *  8x4 tiles correspond to the following bits:
         *      +-------+
         *      +   0   +
         *      +-------+
         *      +   1   +
         *      +-------+
         */
        SubTileBitPos = 2u + (QuadLocalCoord.y >> 1u);
    }
    return __XB_UBFE(1u, SubTileBitPos, CmaskNibble) != 0 ? vRed : vGreen;
#else
    /** Layout modes 4 and 5 are only set when Msaa is enabled.
     *  That means only upper 2 bits out of 4 are valid
     */
    if (SubTileLayoutMode >= 4)
        return (CmaskNibble & 0xc) != 0 ? vRed : vGreen;
    else
        return (CmaskNibble & 0xf) != 0 ? vRed : vGreen;
#endif
}
