Use the GDK with Unreal Engine

Overview

This article describes how to integrate Microsoft Game Development Kit (GDK) components into your Unreal Engine project. It covers the different types of Unreal Engine plug-ins and platform extensions, how to set them up, and what functionality is included within the provided plug-ins and extensions. Epic Games maintains and distributes the GDK Platform Extensions and associated plug-ins.

New to XBOX development with Unreal Engine? See Building XBOX games with Unreal Engine’s new GDK plug-ins for what’s new with the publicly available GDK plug-ins in Unreal Engine 5.8 and the different ways to acquire them.

The Microsoft GDK plug-ins for Unreal Engine were introduced in Unreal Engine 5.7. In Unreal Engine 5.7, these plug-ins are part of the GDK Platform Extensions and require a separate access request. Starting with Unreal Engine 5.8, the same plug-ins are publicly available with the engine through the Epic Games Launcher and the Unreal Engine GitHub source. No separate access request is needed. For more information, see Building XBOX games with Unreal Engine’s new GDK plug-ins. WinGDK no longer receives feature updates and is considered a legacy platform. Epic Games provides a migration tool to port existing projects from WinGDK to Win64. For more information, see the GDK documentation from Epic Games.

Prerequisites

To use the GDK Platform Extensions and GDK plug-ins for Unreal Engine, you need the following prerequisites.

Unreal Engine 4.27 or later (Unreal Engine 5.8 or later recommended; GDK plug-ins are publicly available starting with 5.8, or available with 5.7 via the GDK Platform Extensions)
Visual Studio 2019 (16.9) or later
Windows SDK (22000 or later)
Windows 10 (1809 or later) or Windows 11
Microsoft GDK (install with winget install Microsoft.GDK)

Microsoft GDK plug-ins for Unreal Engine

Each GDK plug-in provides different capabilities when you enable it for your project. The plug-ins in this section are part of the GDK platform extensions that Epic Games distributes. Starting with Unreal Engine 5.8, the GDK plug-ins are publicly available with the engine. You can acquire them through the Epic Games Launcher or the Unreal Engine GitHub source. No separate access request is needed. For a guide on the different ways to acquire these plug-ins, see Building XBOX games with Unreal Engine’s new GDK plug-ins. In Unreal Engine 5.7, the same plug-ins exist but are part of the GDK Platform Extensions, which require membership in an XBOX Developer program, like ID@XBOX, and a separate access request. Request access by using this access request form. Upon approval, you gain access to Unreal Engine source that includes GDK Platform Extensions.

For Unreal Engine 5.7, joining an XBOX Developer Program and requesting access to the GDK plug-ins and GDK Platform Extensions is required for PC, XBOX Series X|S, and XBOX One development. This access requirement has been removed for Unreal Engine 5.8 and later, where the plug-ins are publicly available. If you have any issues, contact your Microsoft representative for assistance.

The key GDK plug-ins to consider are as follows.

Plug-in name	Platform support	Minimum engine version
Microsoft GDK Runtime Plug-in for Unreal Engine	Win64	Unreal Engine 5.7 or later
Microsoft GDK Store Plug-in for Unreal Engine	Win64	Unreal Engine 5.7 or later
Online Subsystem GDK	Win64, WinGDK, XBOX One, XBOX Series X\|S	Unreal Engine 4.27 or later

Microsoft GDK Runtime Plug-in for Unreal Engine: Provides access to the GDK runtime functionality, like XBOX-compatible game saves and XBOX user selection. In Unreal Engine 5.7, this plug-in is in the GDK Platform Extensions folder as MSGamingRuntime. In Unreal Engine 5.8, it has moved to Engine\Plugins\Runtime\Windows\MSGamingRuntime. Microsoft GDK Store Plug-in for Unreal Engine: Provides automatic generation of .msixvc packages for submission to the XBOX PC App. In Unreal Engine 5.7, this plug-in is in the GDK Platform Extensions folder as MSGameStore. In Unreal Engine 5.8, it has moved to Engine\Plugins\Runtime\Windows\MSGameStore. Online Subsystem GDK: Provides GDK integration with the Online Subsystem from Unreal. This plug-in is an engine abstraction layer that provides common interface calls for key features like achievements, friends, and matchmaking. In Unreal Engine 5.7, this plug-in is in all platform folders, including the GDK folder for Win64 support, as OnlineSubsystemGDK. In Unreal Engine 5.8, the Win64 plug-in has moved to Engine\Plugins\Online\Microsoft\OnlineSubsystemGDK.

If you have already enabled these plug-ins for your project, the plug-in names remain the same between Unreal Engine 5.7 and 5.8. Your project configuration is preserved when upgrading. The folder paths only matter if you are navigating the engine source directly.

Additional GDK plug-ins that provide further functionality are as follows.

Plug-in name	Platform support	Minimum engine version
Game Input Base	Win64, WinGDK, XBOX One, XBOX Series X\|S	Unreal Engine 5.4 or later
Game Input (Windows)	Win64, WinGDK	Unreal Engine 5.4 or later
XBOX Common Game Input	XBOX One, XBOX Series X\|S	Unreal Engine 5.4 or later
GDK Package Chunk Installer	Win64, WinGDK, XBOX One, XBOX Series X\|S	Unreal Engine 5.7 or later
GDK Virtual Keyboard	Win64, WinGDK, XBOX One, XBOX Series X\|S	Unreal Engine 5.7 or later
Windows Virtual Keyboard	Win64	Unreal Engine 5.7 or later

The Game Input (Windows), Game Input Base, and XBOX Common Game Input plug-ins provide integration with GameInput functionality within Unreal Engine. These plug-ins are structured as follows.

GameInput (friendly name: Game Input Base)
- Contains the core functionality and an interface for plug-ins lower in this list to implement
  - Platform: Win64
    - GameInput_WinGDK, GameInput_XB1, and GameInput_XSX extend the GameInput plug-in to add support for their respective platform support (no code difference from parent)
GameInputWindows (friendly name: Game Input (Windows))
- Depends on GameInput and implements the interface from the GameInput plug-in
- Platform: Win64
  - GameInputWindows_WinGDK extends GameInputWindows to add support for the WinGDK platform (no code difference from parent)
XboxCommonGDKGameInput (friendly name: XBOX Common GameInput)
- Depends on GameInput and implements an interface from the GameInput plug-in
- Platform: None specified
- Equivalent to GameInputWindows but for the two XBOX platforms and different interface implementation (because of GameInput differences between platforms)
- XboxCommonGDKGameInput_XB1 and XboxCommonGDKGameInput_XSX extend XboxCommonGDKGameInput to add support for their respective platforms (no code difference from parent)

The GDK Package Chunk Installer plug-in provides additional functionality to apply Intelligent Delivery when building your GDK package. In Unreal Engine 5.7, the Win64 compatible plug-in is in the Engine\Platforms\GDK\Plugins folder. In Unreal Engine 5.8, it has moved to Engine\Plugins\Runtime\Microsoft\GDKPackageChunkInstall. Platform-specific plug-ins with the platform suffix for WinGDK, XBOX One, and XBOX Series X|S exist within their respective platform folders. The GDK Virtual Keyboard plug-in and Windows Virtual Keyboard plug-in provide functionality to invoke a virtual keyboard as part of your game. This functionality is especially important when considering gamepad scenarios on handheld devices. The GDK Virtual Keyboard plug-in uses a GDK-specific API to enable this functionality. In Unreal Engine 5.7, the Win64 compatible plug-in is in the Engine\Platforms\GDK\Plugins folder. In Unreal Engine 5.8, it has moved to Engine\Plugins\Runtime\Microsoft\GDKVirtualKeyboard. The Windows Virtual Keyboard plug-in is at Engine\Plugins\Runtime\Windows\WinVirtualKeyboard in Unreal Engine 5.8. Platform-specific plug-ins with the platform suffix for WinGDK (_WinGDK), XBOX One(_XB1), and XBOX Series X|S (_XSX) exist within their respective platform folders.

Unreal Engine and GDK Platform Extensions

The GDK-specific code within Unreal Engine is part of the GDK Platform Extensions. These extensions add to the base engine source and enable you to build your game by using the GDK for PC, XBOX One, and XBOX Series X|S. The extensions include a set of GDK platforms and GDK plug-ins that work with the engine to extend necessary functionality. In Unreal Engine 5.7, the GDK Platform Extensions are a separate download that requires membership in an XBOX Developer program. You need the GDK with XBOX Extensions (GDKx) regardless of your target platform. The extensions include Engine\Platforms source code with the following GDK-specific platforms:

WinGDK
XBOX One
XBOX Series X|S

In Unreal Engine 5.8, the GDK plug-ins for PC (Win64) are publicly available directly in the engine under Engine\Plugins\. The GDK Platform Extensions download is no longer required for PC-only development. XBOX console development (XBOX One, XBOX Series X|S) still requires the GDK Platform Extensions.

Don’t use the WinGDK platform. It’s a legacy option. Use the Microsoft GDK Store and Runtime plug-ins for the Win64 platform for all new PC GDK projects.

The GDK and XboxCommon folders provide shared code between platforms. GDK code is shared across all platforms, and XboxCommon code is shared across XBOX One and XBOX Series X|S platforms. You can find the plug-ins for each platform in the Plugins folder within each platform in the GDK Platform Extensions download. For more information about XBOX One and XBOX Series X|S configurations, see the GDK documentation from Epic Games.

If you’re using Unreal Engine 4, XboxOneGDK appears instead of XB1. Epic Games renamed this platform to XB1 in Unreal Engine 5.

GDK and engine compatibility

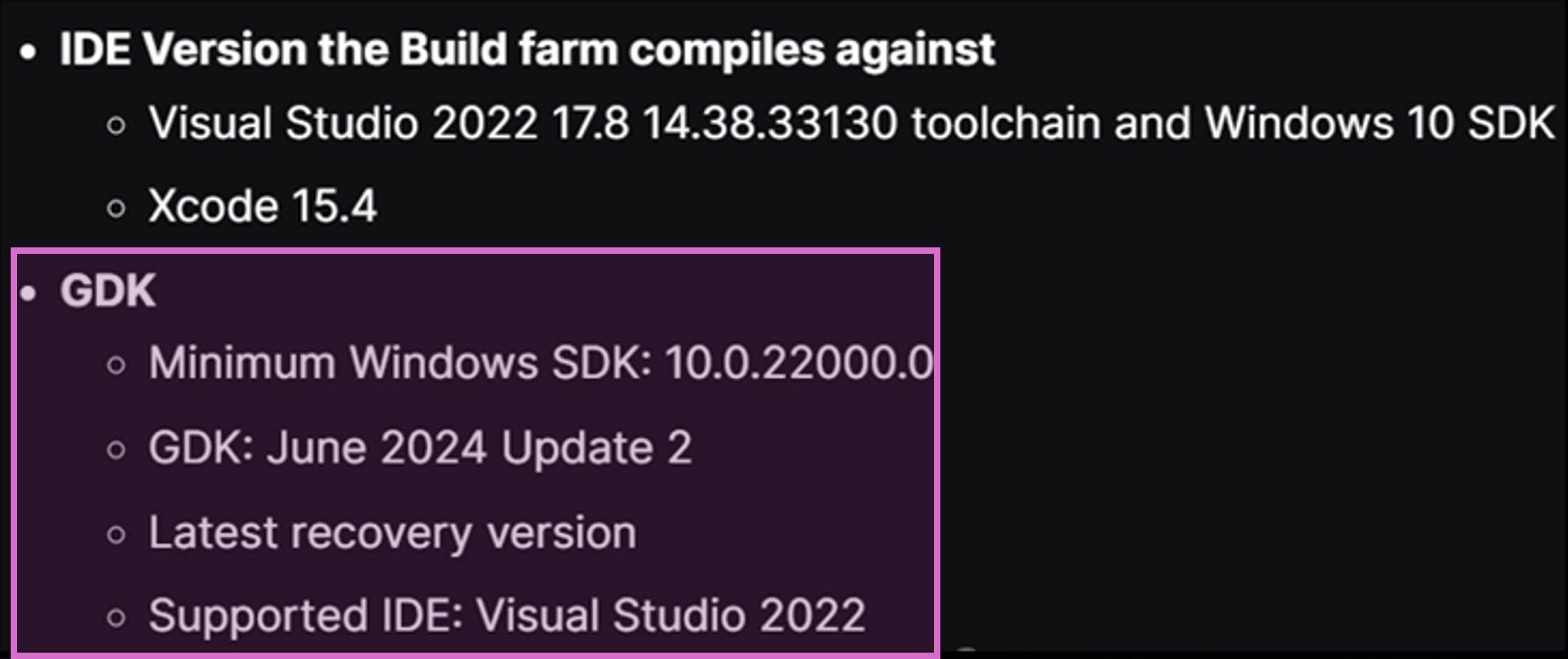

Each Unreal Engine release includes release notes that specify what main GDK version the Unreal Editor supports. The Unreal Engine team tests this version to validate compatibility with the engine. For example: Figure 1. Unreal Engine release notes.

The configuration file that defines this compatibility and the range of supported GDK versions is the GDK_SDK.json file. The location of this file differs by engine version:

Unreal Engine 5.7 and earlier: Engine\Platforms\GDK\Config\GDK_SDK.json
Unreal Engine 5.8: Engine\Config\Microsoft\GDK_SDK.json

For example, in Unreal Engine 5.7:

{
    "MainVersion": "250402",
    "MinVersion": "240604",
    "MaxVersion": "250499",
}

In Unreal Engine 5.8, the field names have changed slightly, and the supported range now includes the April 2026 GDK:

{
    "MainGDKVersion": "260401",
    "MinGDKVersion": "250404",
    "MaxGDKVersion": "260499",
}

If you modify the GDK version in this file, you can use newer GDKs. This approach lets you adopt a newer GDK than an Unreal Engine release. Although the Unreal Engine team strives to avoid compatibility problems, some GDKs might require engine modification to work. There’s no guaranteed compatibility when you modify your maximum version beyond what Epic Games defined in the released version of this file.

Project updates to work with GDK Platform Extensions

After acquiring the GDK Platform Extensions source, update your project files to access the GDK-specific platforms in your IDE. For more information, see Update project files. Run the GenerateProjectFiles.bat file at the root directory of your engine version. When you finish this step, you see options to build for each platform in your IDE Solution Platform dropdown list. Figure 2. Unreal Engine GDK platforms in Visual Studio IDE.

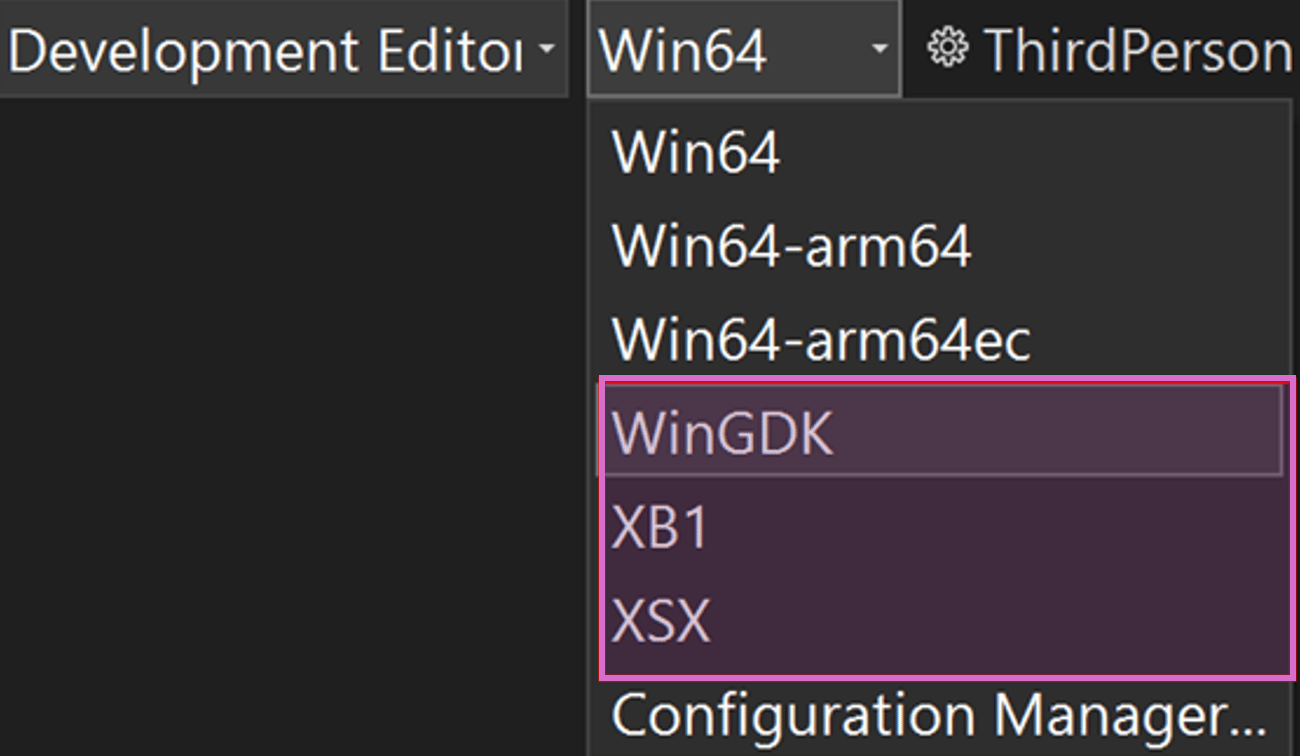

Unreal Engine GDK platforms in Visual Studio IDE.

After rebuilding your editor, you see these platform settings and options available in the Unreal Editor. To test this feature, select the Platforms dropdown list and then confirm that WinGDK, XB1, and XSX exist in the list. Figure 3. Unreal Engine GDK platforms in Unreal Editor.

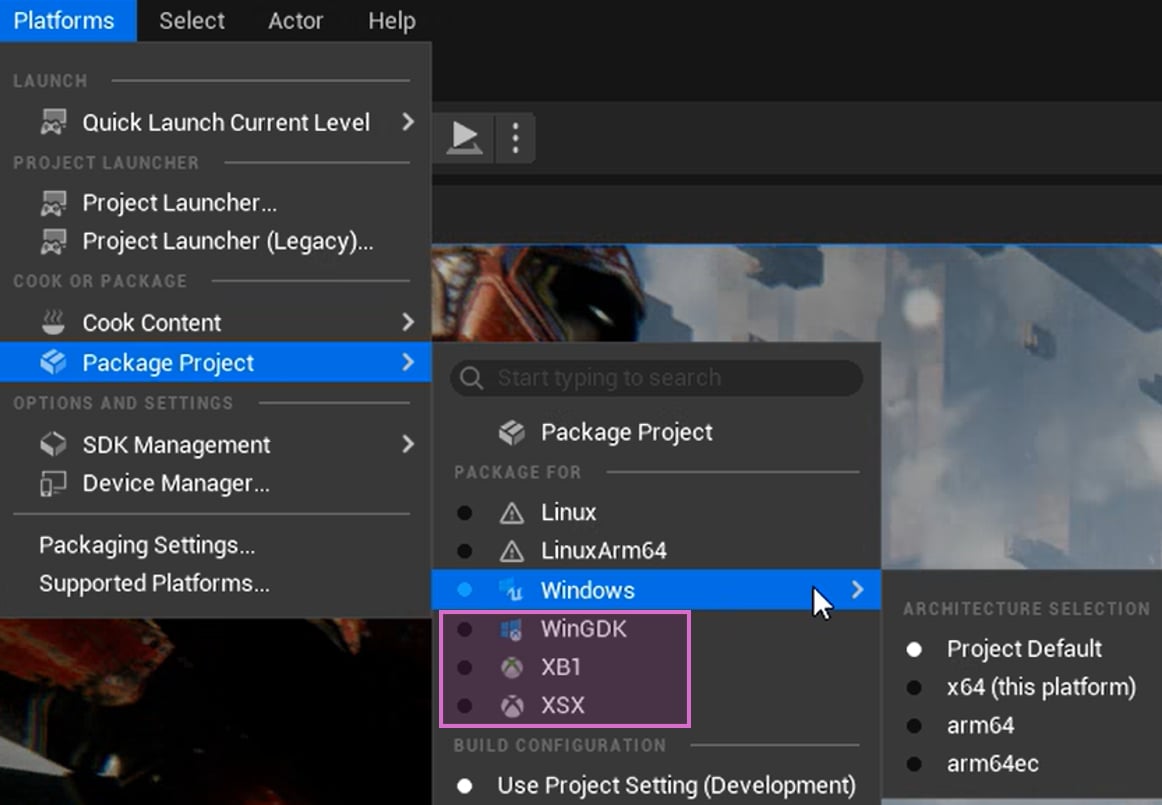

Unreal Engine GDK platforms in Unreal Editor.

For more information, see Building Unreal Engine from Source.

The Microsoft GDK plug-ins for Unreal Engine let you build GDK games directly in the Win64 platform. This approach creates a unified PC build path across multiple storefronts. It eliminates the extra cooking steps and plug-in incompatibilities that occur with the legacy WinGDK platform. The Microsoft GDK plug-ins for Unreal Engine are the future for PC GDK integration within Unreal Engine. For more information about them, and how to migrate your existing WinGDK project to Win64 GDK plug-ins via a migration script provided by Epic Games, see the GDK documentation from Epic Games.

Add GDK plug-ins to your project

A subset of GDK plug-ins are automatically enabled by default for XBOX One and XBOX Series X|S. For more information, see UEBuildXboxCommon.cs in the Unreal Build Tool (UBT) source.

After you acquire and set up the GDK Platform Extensions, you can start to configure your project to get started with the GDK. Each plug-in is available in the Plugins UI in Unreal Editor under the Edit Menu. When selecting a plug-in, ensure that you select the checkbox to enable it. Restart your Editor after you enable the plug-ins to ensure that they work correctly. Figure 4. Example GDK Plug-in being enabled in Unreal Editor.

Example GDK Plug-in being enabled in Unreal Editor.

In addition to enabling plug-ins within Unreal Editor, ensure any build target you define also enables these plug-ins for compilation. Consider the following example for your Windows build target.

EnablePlugins.AddRange([
    "MSGameStore",
    "MSGamingRuntime",
    "OnlineSubsystemGDK",
]);

For information about setting up build targets with the GDK plug-ins for Unreal Engine, see the GDK documentation from Epic Games.

Configure your GDK plug-ins for title-specific data

After setting up your GDK plug-ins and GDK platform extensions, update the Platform and Plugin settings in the Project Settings menu. You can find the XBOX One and XBOX Series X|S platforms in the Platform Settings. The Microsoft GDK plug-ins for Unreal Engine are in the Plugin Settings. Figure 5. Unreal Engine GDK Platform and Plugins settings.

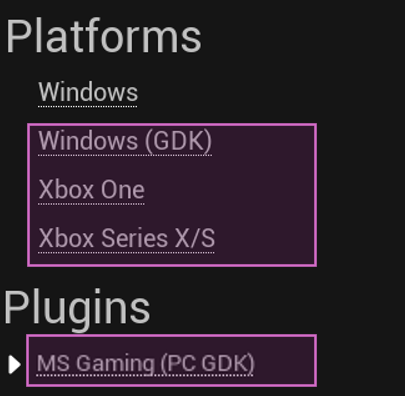

Unreal Engine GDK Platform and Plugins settings.

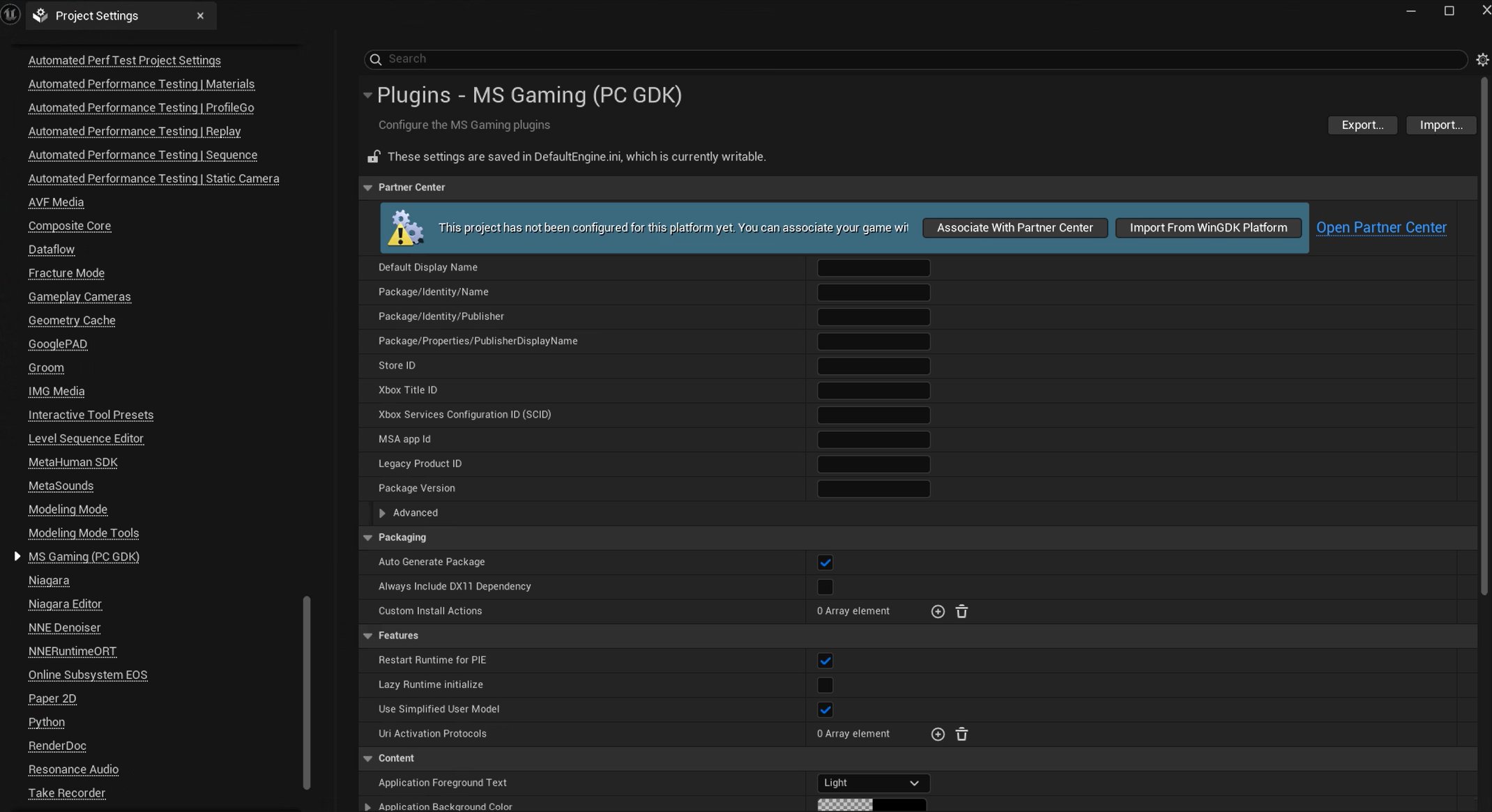

Each platform and plug-in contains a similar set of settings that help you configure your MicrosoftGame.config file and packaging configuration. Figure 6. GDK Plug-ins Project Settings part 1.

Your local MicrosoftGame.config needs your product information, such as Title ID and Store ID, to work properly with the GDK and XBOX Services. Use the Associate with Partner Center option to sign in to a Microsoft account that has Microsoft Partner Center access. This option automatically adds your product details to your local MicrosoftGame.config file, so you don’t need to enter them manually. In addition to MicrosoftGame.config setup, configure the packaging and installation options. Figure 7. GDK Plug-ins Project Settings part 2.

Beyond Platform and Plugin settings, ensure your DefaultEngine.ini has the necessary information. The MS Gaming (PC GDK) Plugin Settings automatically write this information into the section. Here’s an example of the DefaultEngine.ini using the GDK plug-ins for reference.

To specify any overrides in your Platform Engine .ini file (for example, WindowsEngine.ini), manually modify that file.

[/Script/MSGamingSupport.MSGamingSettings]
TitleId=00000000
PrimaryServiceConfigId=00000000-0000-0000-0000-000000000000
ProductId=ProductValue
ContentId=ContentIDValue
PackageName=PackageName
StoreId=0000000000
DefaultDisplayName=Test Game
PublisherName=CN=PublisherValue
PublisherDisplayName=Test Company
EKBID=EKBIDValue
MSAAppId=MSAppIdValue
bRequireXboxLive=True
bUseSimplifiedUserModel=True
ManifestVersion=1

To use the GDK Package Chunk Install plug-in for Intelligent Delivery, ensure that you specify it in your .ini file.

[StreamingInstall]
DefaultProviderName=GDKPackageChunkInstall

Use the Online Subsystem GDK

The Online Subsystem GDK plug-in provides engine abstraction of key XBOX Services APIs to simplify game code written to do similar actions across many stores and platforms (for example, sign-in, store purchases, achievements, friends, matchmaking). Use Online Subsystem if you’re building a GDK game. To configure the Online Subsystem GDK, edit your DefaultEngine.ini (or Platform Engine .ini file) with additional details to ensure that it works properly for your game. Here’s an example for the WindowsEngine.ini.

[OnlineSubsystem]
DefaultPlatformService=GDK

[OnlineSubsystemGDK]
eEnabled=True
AchievementMode=2017
; to specify using title-managed achievements, must match configuration in Partner Center
StatsMode=2013
; to specify using event-based stats, must match configuration in Partner Center
PrimaryServiceConfigId=00000000-0000-0000-0000-000000000000

Achievement names used in Unreal Engine need to be mapped to the achievement IDs used in Partner Center. To map achievement names used in Unreal Engine, create a file named Achievements.json in the platforms\GDK\Config\OSS\ directory of your project (note that the path might not exist and you might need to create it yourself). Achievements.json contains a mapping for achievement names to their Partner center IDs. For example, if your project has 10 achievements named achievement 1 through achievement 10, Achievements.json looks like this.

{
    "AchievementEventName" : "NotUsedInAchievement2017",
    "AchievementMap" :
    {
      "achievement 1" : 1,
      "achievement 2" : 2,
      "achievement 3" : 3,
      "achievement 4" : 4,
      "achievement 5" : 5,
      "achievement 6" : 6,
      "achievement 7" : 7,
      "achievement 8" : 8,
      "achievement 9" : 9,
      "achievement 10" : 10
    }
}

For more information, see Configuring your title-managed achievements in Partner Center. In addition to configuring your DefaultEngine.ini and setting up your Achievements.json file, pass GDK_SUBSYSTEM in your calls to Online::GetSubsystem().

The Online Subsystem GDK uses Microsoft Azure PlayFab Party directly through GDK PlayFabParty plug-ins as a Socket Subsystem.

Use Visual Studio and Unreal Engine

Visual Studio provides additional functionality, as part of the Visual Studio Installer, for better integration with Unreal Engine. This functionality is included in the Game development with C++ workload. Two optional installation components, called Visual Studio Tools for Unreal Engine and Visual Studio debugger tools for Unreal Engine, provide native uplugin support and the capability to debug Blueprint logic from within Visual Studio. Figure 8. Visual Studio Tools for Unreal Engine in Visual Studio Installer.

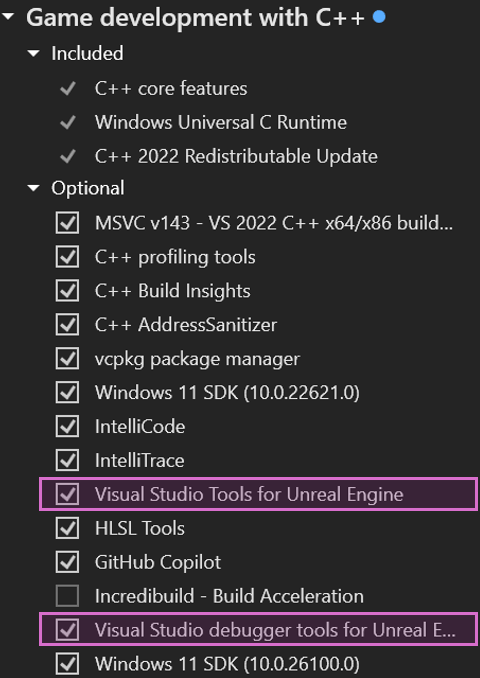

Visual Studio Tools for Unreal Engine in Visual Studio Installer.

For more information about the Visual Studio Tools for Unreal Engine, see Install Visual Studio Tools for Unreal Engine.

Build, cook, and package your project

Use the Unreal Automation Tool to automatically build, cook, and package your game for each GDK platform. This tool also creates a package for your GDK plug-in integration by using the Win64 platform. To use this tool, follow the provided syntax.

RunUAT BuildCookRun -project=TestGame -Platform=Win64 -build -cook -stage -pak -archive -archivedirectory=C:\TestGame\ -package

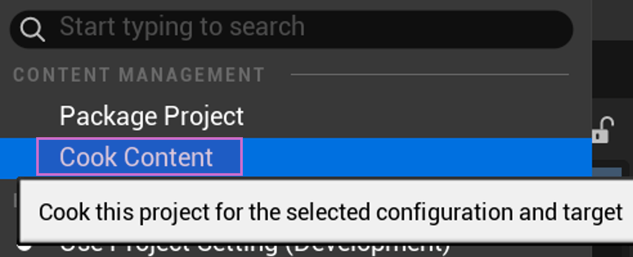

You can build, cook, and package your game through the Unreal Editor. For detailed stages about this process, see Build Operations: Cook, Package, Deploy, and Run. Each platform requires a unique cook of your content to ensure that it works properly for the target platform. Go to the Platforms dropdown menu in the Unreal Editor and select Cook Content for the desired platform. Figure 9. Cook option within Unreal Editor.

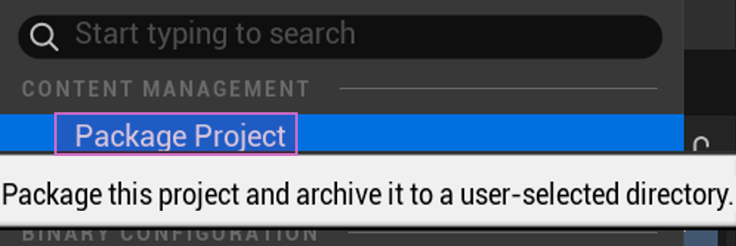

To package your game in Unreal Editor, go to the Platforms dropdown menu, and then select Package Project for the platform you want. This action creates an XVC or an MSIXVC package in your build output directory. Figure 10. Package option within Unreal Editor.

Testing your project

You can also use the Unreal Automation Tool to deploy and launch your build. To do so, use these flags.

RunUAT BuildCookRun [...]] -package -deploy -run

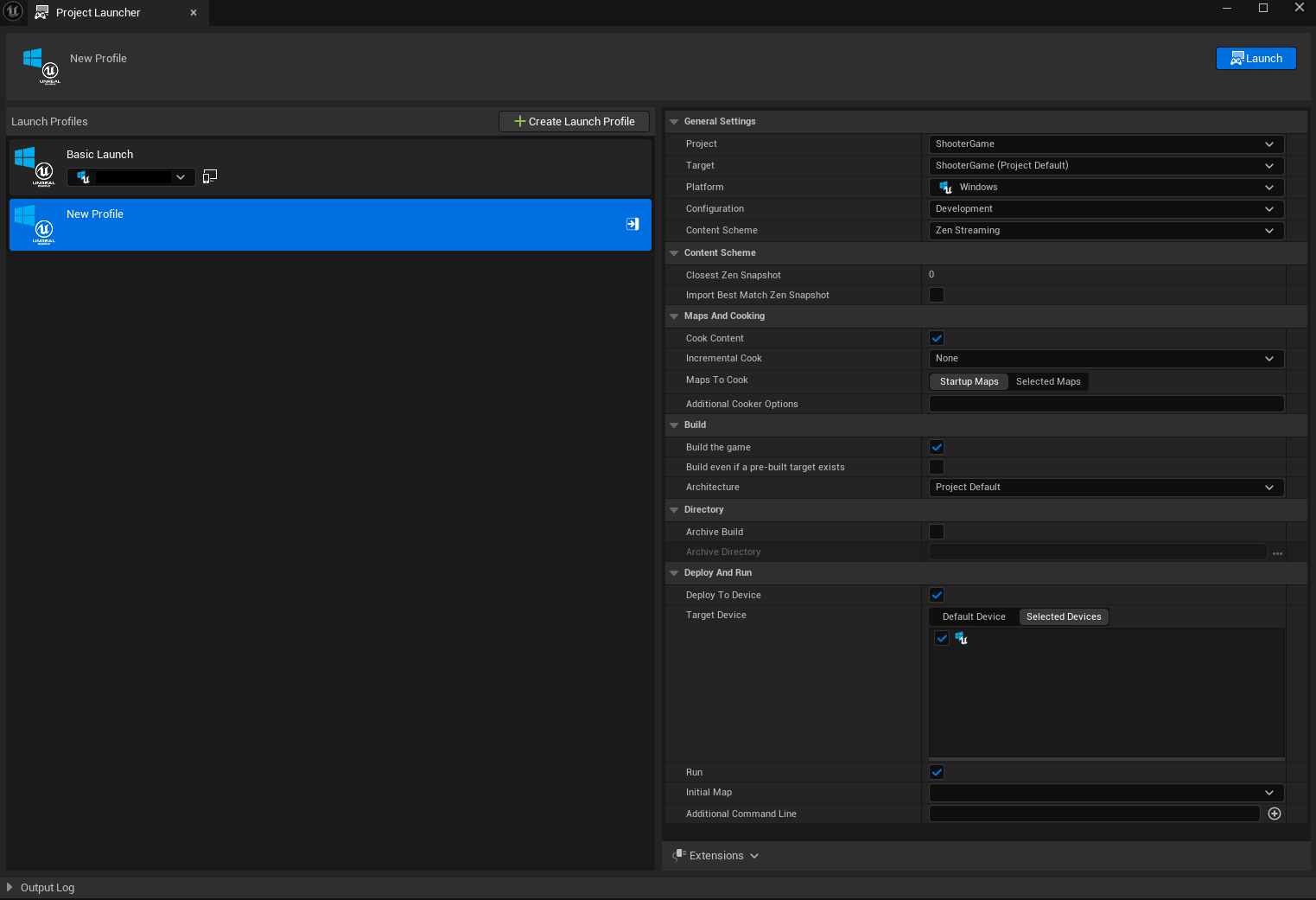

To test your standalone build, use the built-in Launch settings as part of the Project Launcher in Unreal Editor. Figure 11. Example Project Launcher profile.

For packages that you generate through the Unreal Editor UI, you need to use GDK tools to install and launch them outside Unreal Editor. Currently, the Project Launcher doesn’t support installing and launching these packages. For information about how to do this task for PC GDK titles, see Utilizing Microsoft Game Development Kit tools to install and launch your PC title. By using the Microsoft GDK Plug-ins for Unreal Engine, you can use Play In Editor (PIE) to test your game with XBOX Services directly from within the Editor on the Win64 platform.

There are some known limitations with the WinGDK platform and PIE support. We recommend standalone and packaged build testing for this platform.

Test your game remotely via XBOX PC Remote Tools

As of Unreal Engine 5.8, Remote Windows Deployment lets you build, cook, deploy, and launch your game on a separate Windows PC, including Windows on Arm64 hardware, directly from Unreal Editor or from the command line. This feature is backed by the XBOX PC Remote Tools. After you install the XBOX PC Toolbox on both your development machine and the target device and pair them, you register the target in your engine configuration and then select it from the Launch On menu in the editor toolbar, or pass -deploy -run -device=<DeviceName> to RunUAT BuildCookRun. For setup steps, see the XBOX PC Remote Tools quickstart guide. For engine-side configuration and command-line examples, see Remote Windows Deployment in Unreal Engine in the Epic Games documentation.

Additional information

Using Microsoft Azure PlayFab with Unreal Engine

For more information about working with PlayFab, which includes direct integration and plug-ins to work within Unreal Engine, including Online Subsystem support, see the PlayFab Unreal Engine Quick Start page.

Windows handheld device detection

Unreal Engine 5.7 supports detection of Windows handheld devices via FPlatformMisc::IsDeviceHandheld(). This function returns true or false depending on the device state.

Getting help

For Unreal Engine-specific support or questions, including questions related to the Microsoft GDK Plug-ins for Unreal Engine or the GDK Platform Extensions, see the Epic GDK support forum. If you need help with GDK-specific articles that aren’t related to Unreal Engine integrations, post your questions on the XBOX GDK forums.

Using earlier versions of Unreal Engine

If you’re using Unreal Engine 4.26 or earlier, follow different steps to target the GDK. Additionally, you need to do more custom integration of platform features and packaging than with later versions of the Unreal Engine. Upgrade to Unreal Engine 4.27 or later for the best experience. For more information about using the GDK with Unreal Engine 4.26 or earlier, see Building GDK games for earlier versions of Unreal.
